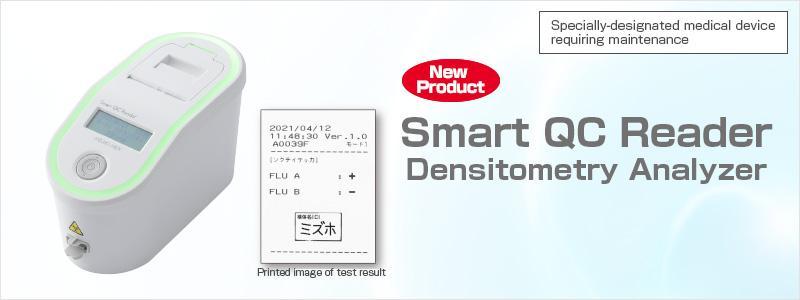

Densitometry Analyzer Smart QC Reader
*Currently, this product is available in Japan only*
Features

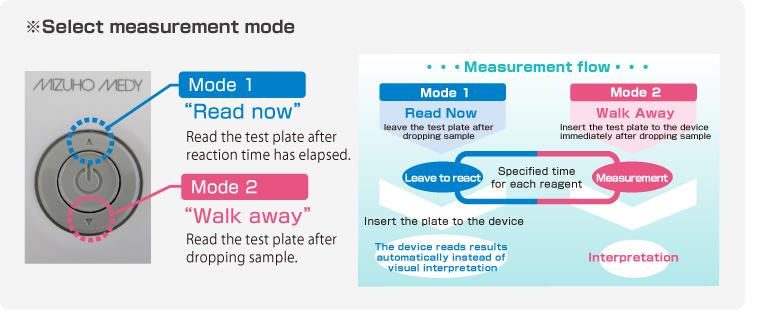

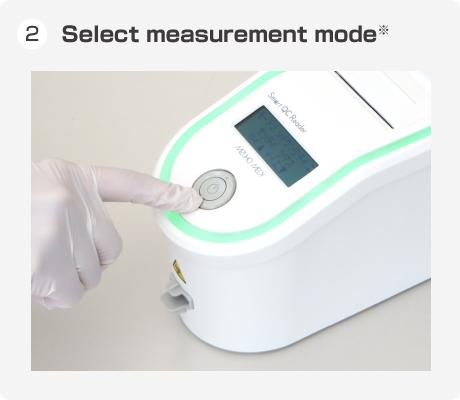

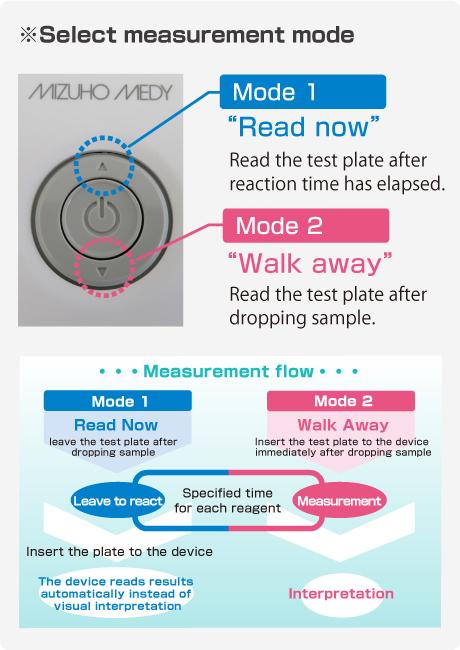

・Selectable mode settings
①Read Now／②Walk Away

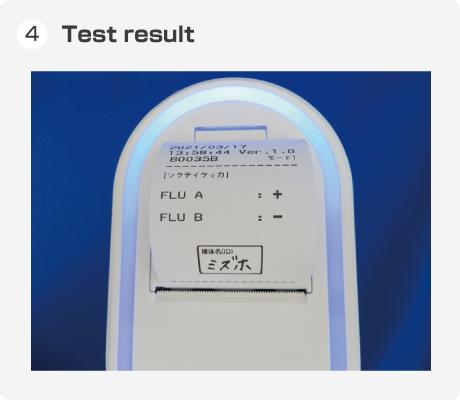

・Test result is automatically printed out
・Light weight, compact and portable
・No need for time management (※depends on mode settings)
Product Overview
| Measurement principle | Irradiate a dedicated test plate with LED light and reads with an optical sensor, and obtains the color density of the lines by image analysis. | Power supply |
|
|---|---|---|---|
| Start-up time | Within 15 seconds | Operating environment | 1 to 30℃, 20 to 80% RH (no condensation) |
| Display panel | Monochrome liquid crystal display | Storage environment | -10 to 50℃, 10 to 90% RH (no condensation) |
| Built-in printer | 58mm widths thermal printer | External dimensions | 103x220x125mm (width x depth x height) |
| Service life | 2 years or 5,000 tests, whichever comes first (based on self-certification) | Body weight | 10. Approx. 0.7kg |
Kit Composition
Kit Composition
| Product No. | 88000 |
|---|---|
| Device | 1 unit |
| AC adaptor | 1 piece |
| Record paper | 1 roll |
| User manual | 1 copy |
| Other documents | 1 set |
Optional items
Thermal paper rolls
| Product No. | 82011 |
|---|---|
| Thermal paper rolls | 6 rolls |

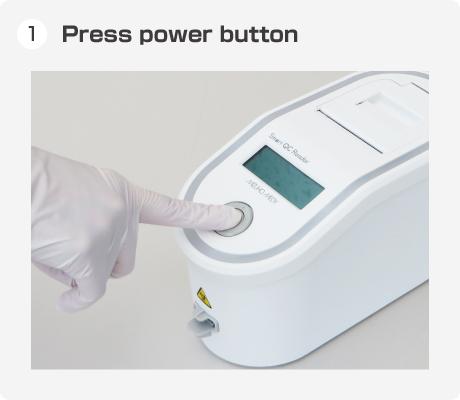

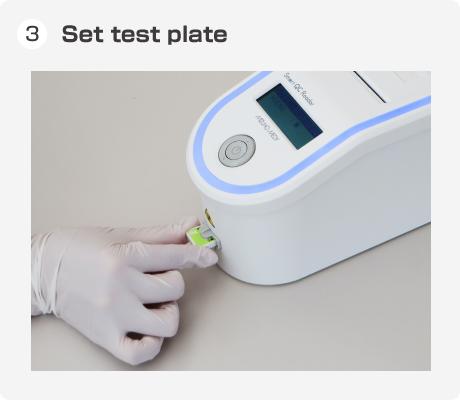

Measurement Flow
Simply drop sample to a test plate and set to the device. Once a plate is set, no other operation is required until the measurement is completed.
Product video
Video: Introduction of "Smart QC Reader"
※Available in Japanese only
This video mainly covers Mode 2
Click the image to play the video. Please beware of sound volume.Related products
